IND non Metallic Pumps are ideally suited for intermittent / on-demand, portable, moderately abrasive fluids, and suspended solids. Standard duty pumps are constructed in Aluminum, Cast Iron, Stainless Steel and non-metallic materials such as PTFE, Polypropylene, and PVDF with elastomer TPE (thermal plastic elastomers) and PTFE options in diaphragms and check valves.
IND non Metallic Pumps are ideally suited for intermittent / on-demand, portable, moderately abrasive fluids, and suspended solids. Standard duty pumps are constructed in Aluminum, Cast Iron, Stainless Steel and non-metallic materials such as PTFE, Polypropylene, and PVDF with elastomer TPE (thermal plastic elastomers) and PTFE options in diaphragms and check valves.

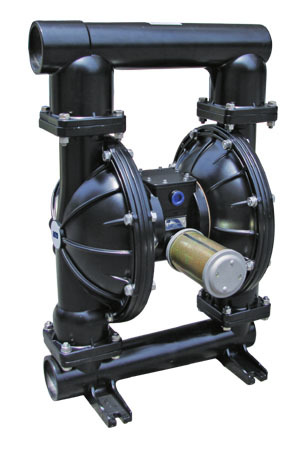

IN80 Aluminum
IN80 Aluminum
Specifications
Port Size
3" FF
Capacity
0 to 280 gpm (1060 lpm)
Air Distribution Valve
No-lube, no-stall design
Solids-Handling
Up to .0.370" (9.4 mm)
Heads Up To
125 psi or 288 ft. of water (8.4 bar or 85 meters)
Max Operating Pressure
125 psi (8.4 bar)
Shipping Weight
Aluminum Shipping Weight : 154 lbs. (70kg)
Stainless Steel Shipping Weight : 264 lbs .(120kg)
Specifications
Port Size
3" FF
Capacity
0 to 280 gpm (1060 lpm)
Air Distribution Valve
No-lube, no-stall design
Solids-Handling
Up to .0.370" (9.4 mm)
Heads Up To
125 psi or 288 ft. of water (8.4 bar or 85 meters)
Max Operating Pressure
125 psi (8.4 bar)
Shipping Weight
Aluminum Shipping Weight : 154 lbs. (70kg)
Stainless Steel Shipping Weight : 264 lbs .(120kg)
